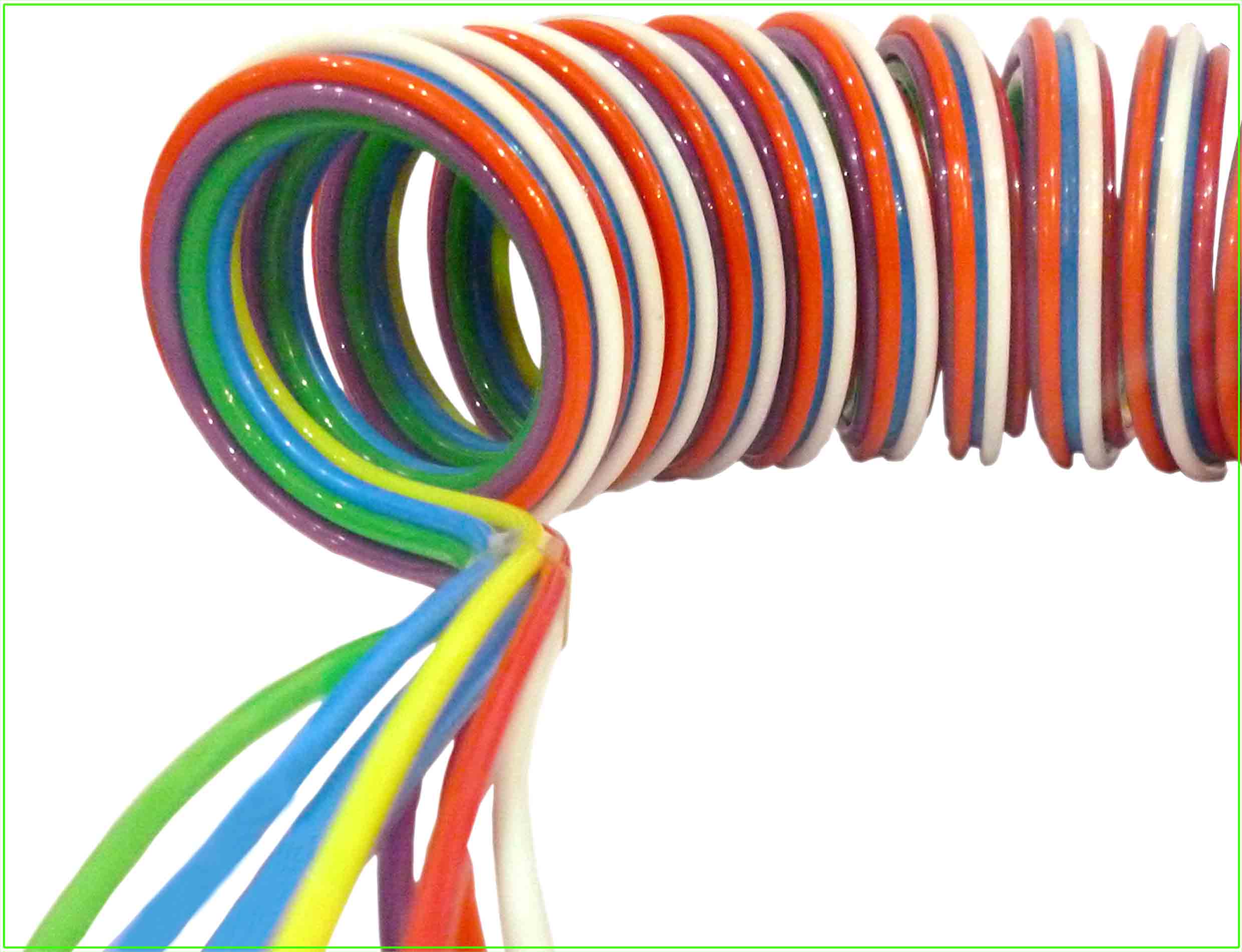

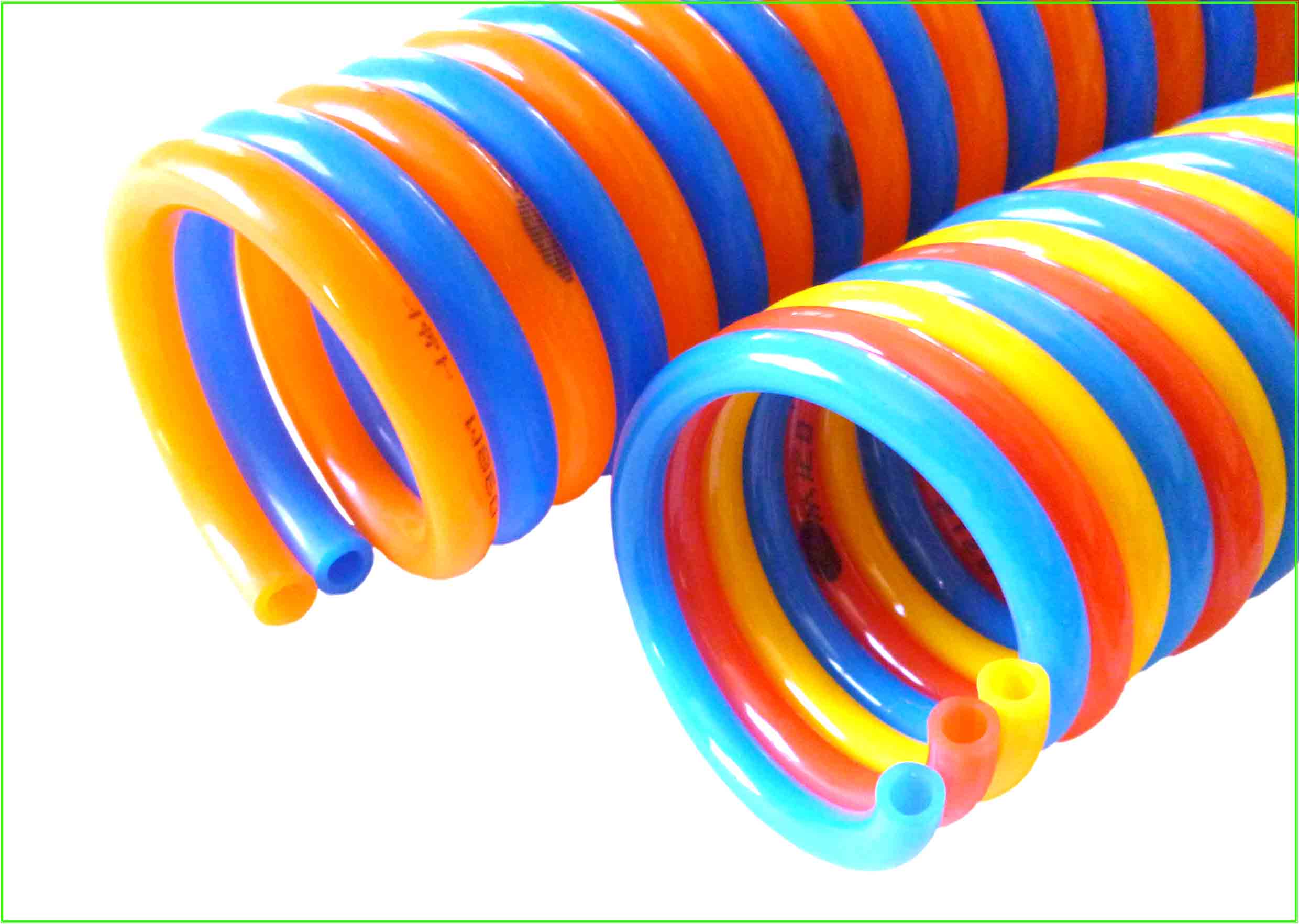

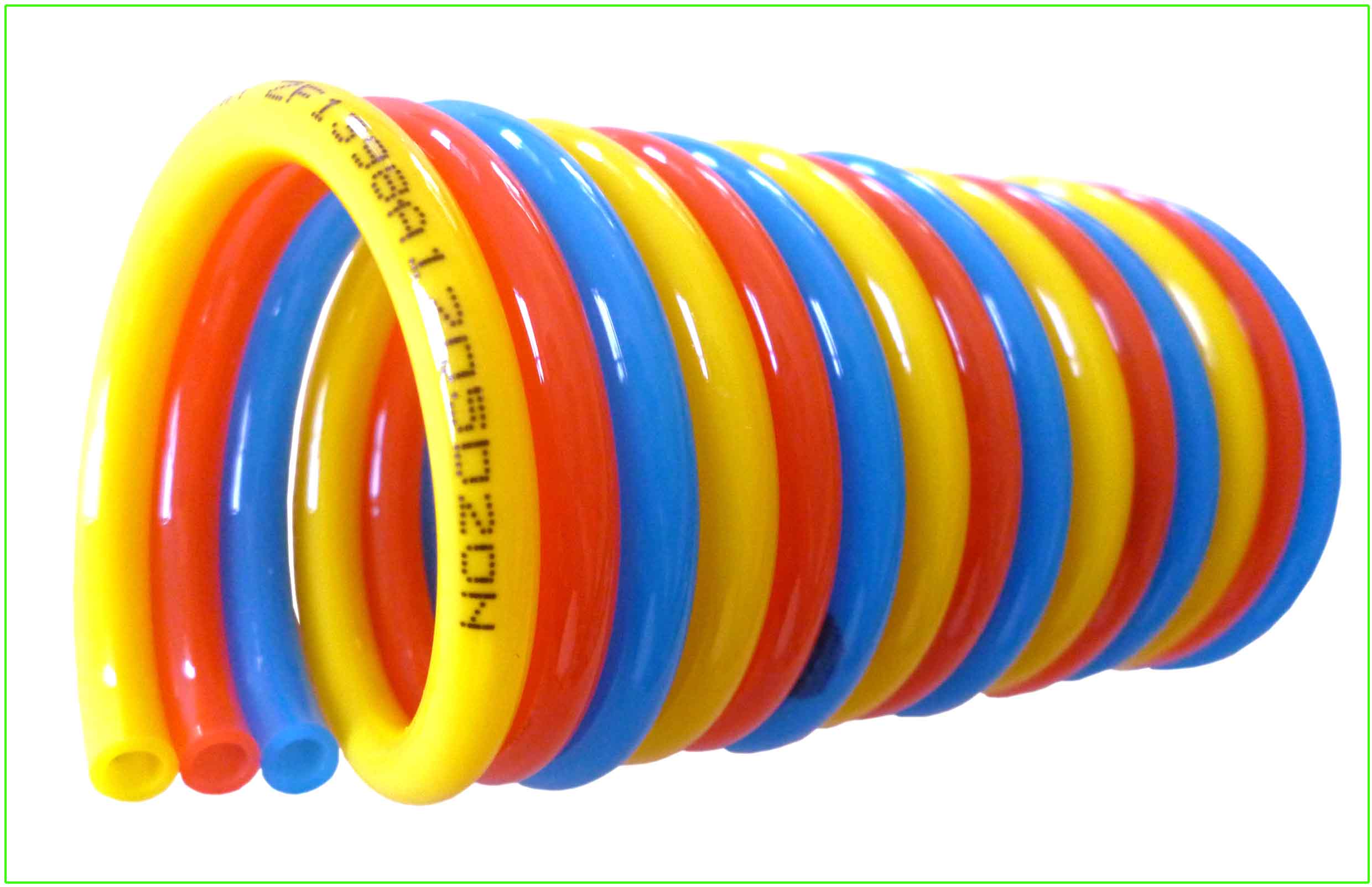

Polyurethane   PU Two-Row Coil Hose

Product Characteristic：

◆Good elastcity,it’s easy to operate,saves the space.

◆Absorbing impact and reduces the pipeline to rub.

◆Custom-made specification and size are doable.

◆Working Temperture:approximately—20℃——+70℃。

◆Conform to the ROHS environmental protection

  requirement.
◆After being separated the tube still could maintain the

  smooth tube surface,guranteed that with bese sealing

  property with joint.

Product Use：

◆Industry robot.

◆Transport water and other liquid.

◆Being used for automobile,engine,other projuct

  transportaion.

Datasheet：

Item No.	Metric Measurement						Working Pressure	Disruptive Pressure
	I.D.	O.D.	Length
	mm	mm	M				Kgf/cm2	Kgf/cm2
TUTRC0640	4.0	6.0	6.0	9.0	12.0	15.0	15.0	65.0
TUTRC0855	5.5	8.0	6.0	9.0	12.0	15.0	15.0	65.0
TUTRC1065	6.5	10.0	6.0	9.0	12.0	15.0	15.0	65.0
TUTRC1280	8.0	12.0	6.0	9.0	12.0	15.0	15.0	65.0
